ITOP Plots of the Day
Selected plots are posted here daily by the ITOP-UK group. They are
intended as discussion points for flight planning purposes.
In addition you can view
forward trajectories from the P3, DC8 and BA146 flight tracks during the ICARTT experiment.
Posted 22/7/04.

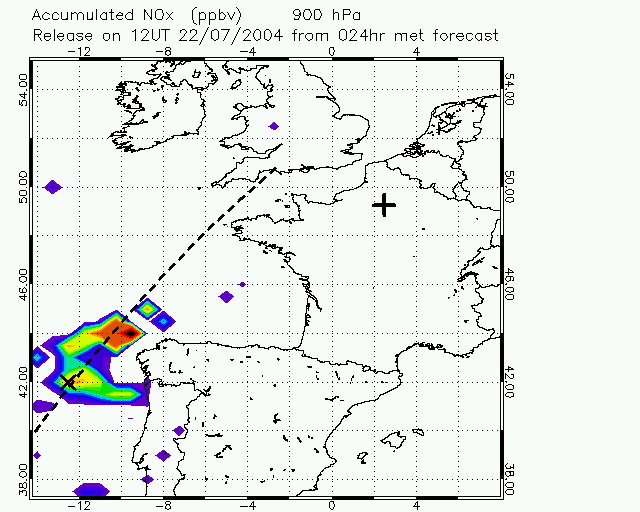

Fig.1: Falcon flight on 22 July. NOx emissions tracer over European domain at 900hPa (12UT). The cross marks the air that has already been sampled by the P3 on 15/7/04 off the coast of New York and by the BA146 on 19/7/04 at 46N, 23W.

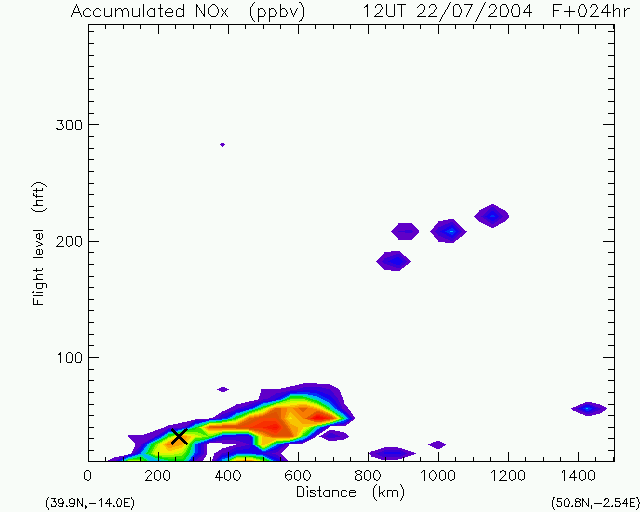

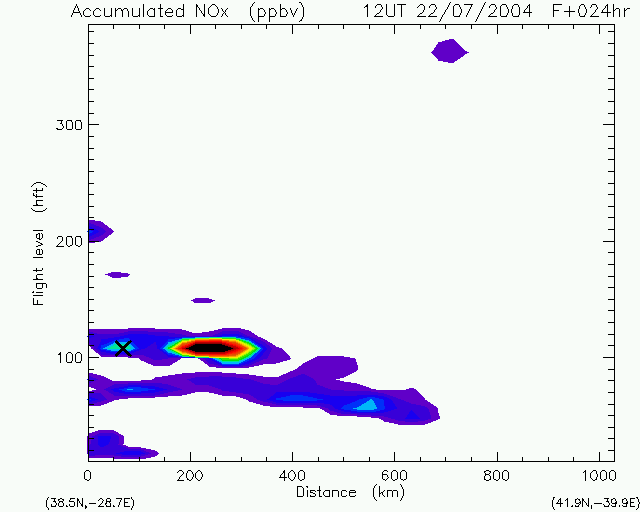

Fig.2: Section along the dashed line in Fig.1 showing NOx emissions tracer. Cross marks layer which has already been sampled. Please note that the bottom of the y-axis is 1000ft.

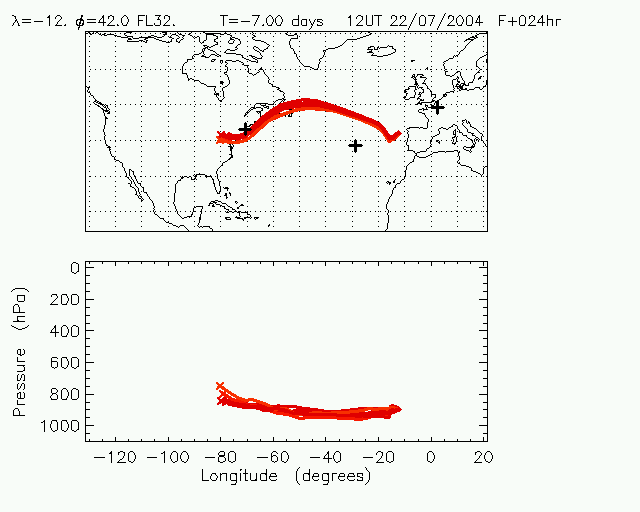

Fig.3: Back trajectories from the cross on Figs. 1 and 2.

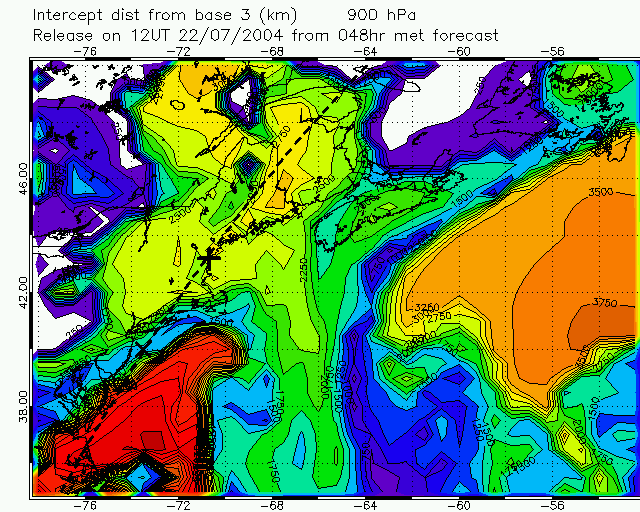

Fig.4: Closest approach of back trajectories to Pease, New Hampshire.

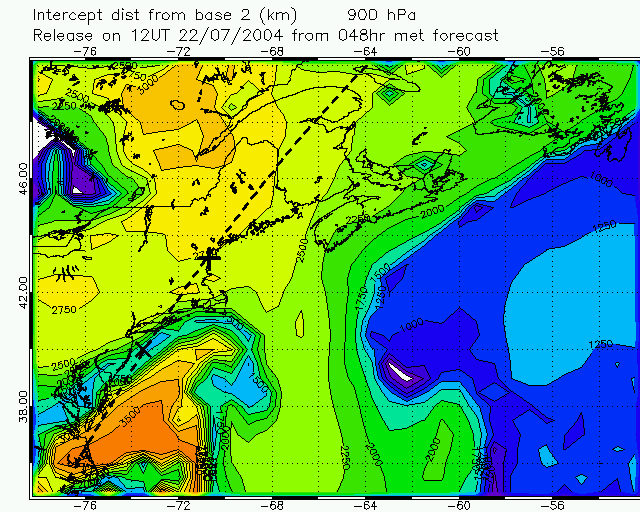

Fig.5: Section along the dashed line in Fig.4 showing closest approach of back trajectories to Pease.

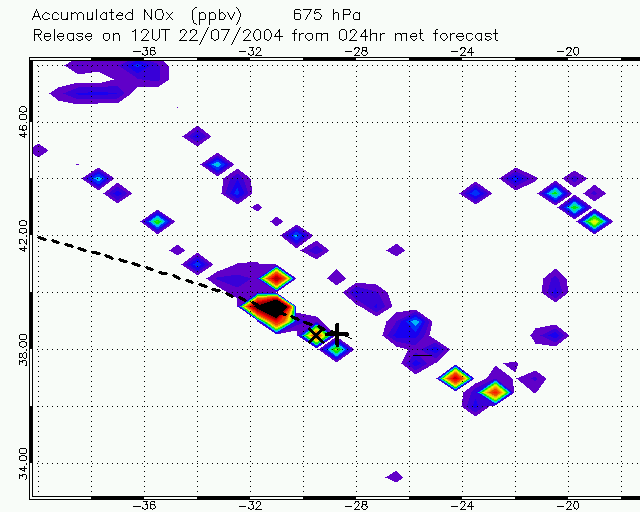

Fig.6: BA146 flight on 22 July. NOx emissions tracer over Azores domain at 675hPa (12UT).
Fig.7: Section along the dashed line in Fig.6 showing NOx emissions tracer. Cross marks layer is heading for France.

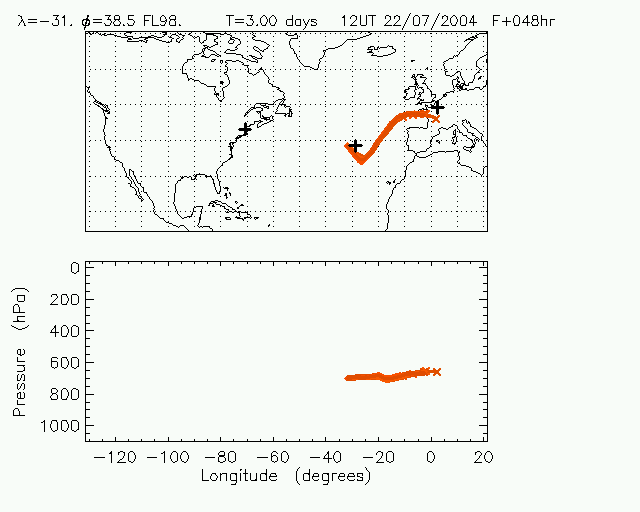

Fig.8: Forward trajectories from the cross on Figs. 6 and 7 reaching France on 25 July.

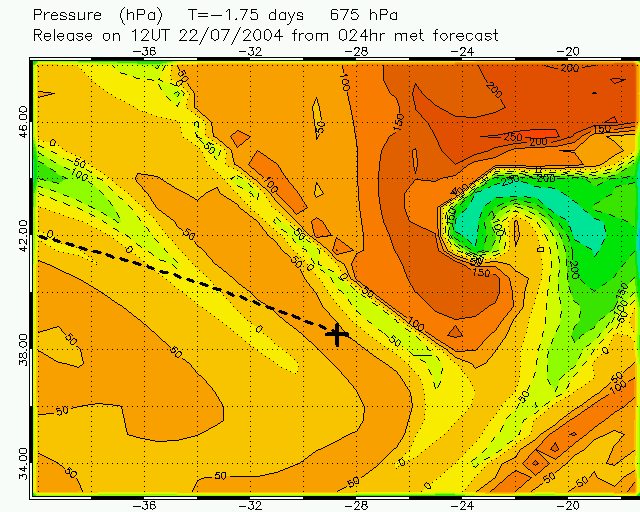

Fig.9: BA146 flight on 22 July. Change in pressure along 1.75 day back trajectories showing regions of recent ascent (green) and descent (red). A frontal wave cyclone to the NE of Faial is clearly seen. The American pollution lies within the warm conveyor belt and along the cold front behind to the west (over Faial). Note the change in orientation of the cold front between the T+24 hr forecast and yesterday's T+48 hr forecast.

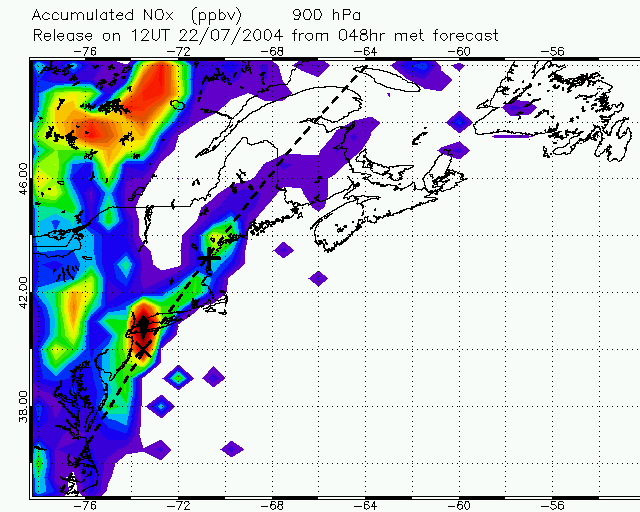

Fig.10: P3 and DC8 flights on 22 July. NOx emissions tracer over US East coast domain at 900hPa (12UT).
Fig.11: Section along the dashed line in Fig.10 showing NOx emissions tracer.

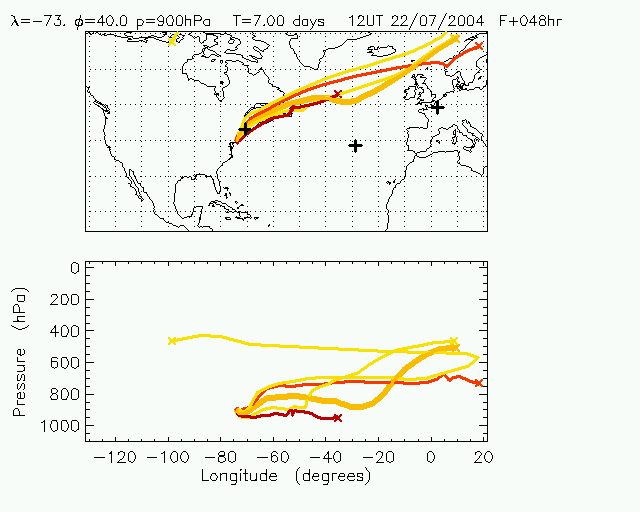

Fig.12: Forward trajectories from the cross on Figs. 10 and 11. Heading out of range of BA146 in Azores and probably DLR Falcon in Creil.
Fig.13: Flight on 22 July. Closest approach of forward trajectories from 900hPa to Faial, Azores.

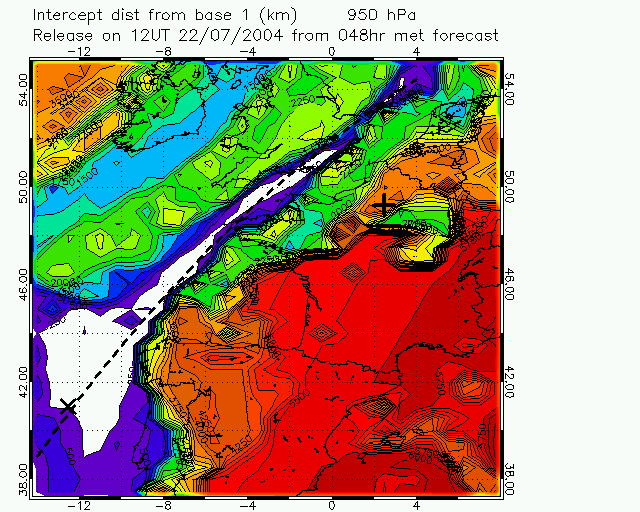

Fig.14: Flight on 22 July. Closest approach of forward trajectories from 900hPa to Creil, France.
