Rotated pole plots

Example 21 - rotated pole plot

_images/fig21.png
import cf, cfplot as cfp
f=cf.read('/opt/graphics/cfplot_data/rgp.nc')[0]
cfp.cscale('gray')
cfp.con(f)


Example 22 - rotated pole plot from CF uncompliant data

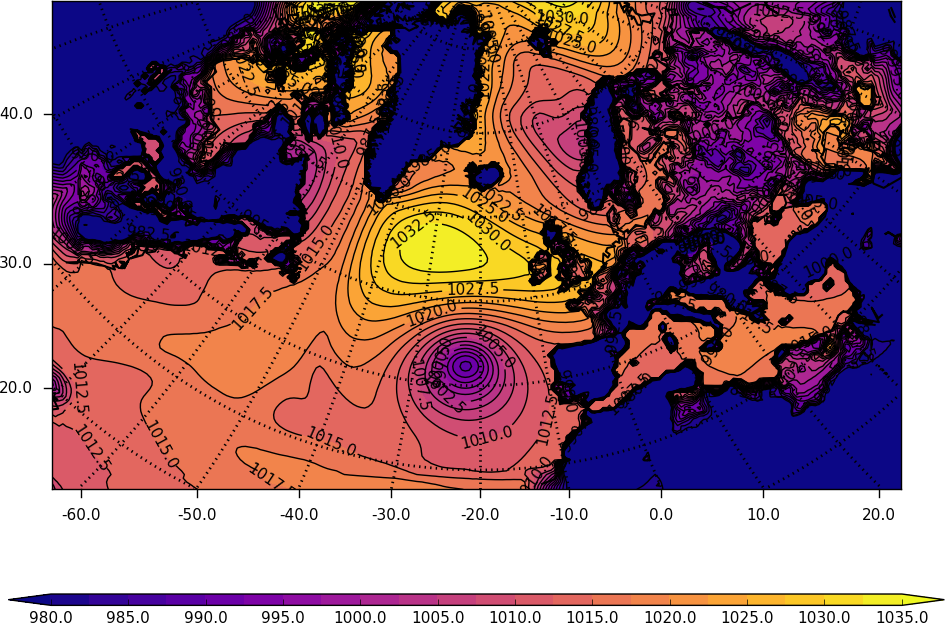

The previous example uses the CF attributes to extract the rotated pole coordinates. If these are not available then the following example shows how to make the plot using more basic cf-plot commands.

_images/fig22.png
import cf, cfplot as cfp
import numpy as np

f=cf.read_field('/opt/graphics/cfplot_data/rgp.nc')
data=f.array
xvec=f.item('dim1').array
yvec=f.item('dim0').array
xpole=160
ypole=30

cfp.gopen()
cfp.cscale('plasma')
xpts=np.arange(np.size(xvec))
ypts=np.arange(np.size(yvec))
cfp.gset(xmin=0, xmax=np.size(xvec)-1, ymin=0, ymax=np.size(yvec)-1)
cfp.levs(min=980,max=1035, step=2.5)
cfp.con(data, xpts, ypts[::-1])
cfp.rgaxes(xpole=xpole, ypole=ypole, xvec=xvec, yvec=yvec)
cfp.gclose()


Example 23 - rotated pole data on a cylindrical projection map

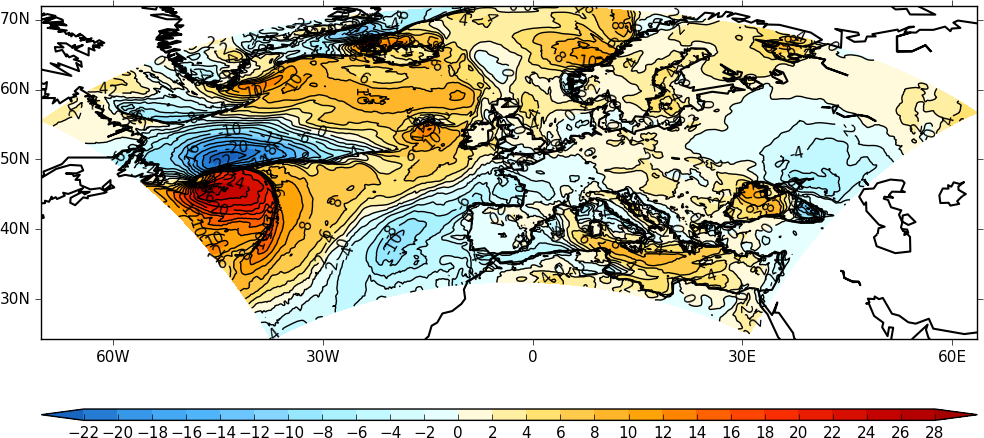

Here we extract the real longitude and latitude data locations from a rotated grid file and use these to make a cylindrical projection contour plot of the data. The ptype=1 flag is passed to the cf-plot con routine to indicate that the data is to be plotted on a map.

_images/fig23.png
import cf, cfplot as cfp, numpy as np

f=cf.read('/opt/graphics/cfplot_data/xjpgaa_ca072_byteswapped.pp')[12]
z=np.squeeze(f.subspace(model_level_number=1).array)
x=f.item('longitude').array
y=f.item('latitude').array

cfp.con(x=x, y=y, f=z, ptype=1)
