Tuesday 16/06/2015
For period 1986-2000

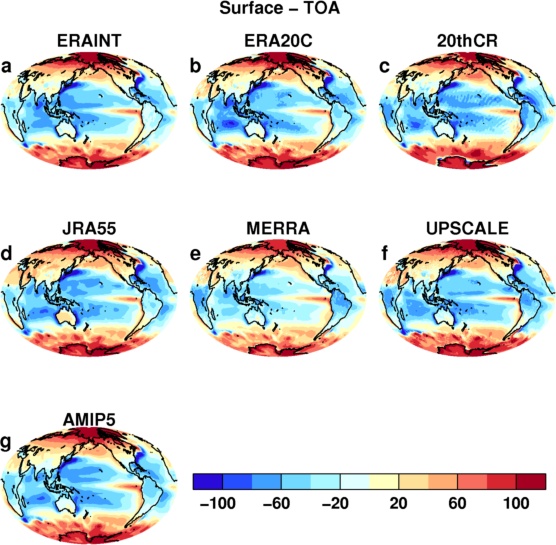

Fig. 1: Multi-annual (1986-2000) mean of FS - FTOA (referenced as DIV).
(a) DIV is adjusted (add a contant) to keep area mean FS = 0 over land.
(b) DIV over ocean is adjusted (add a constant) to make sure global mean DIV = 0.
Note: Mean CERES TOA flux over land (~-19W/m2 is used. (BUT mean TOA flux value over land is from each model in yesterday's plot (15/06/2015)).

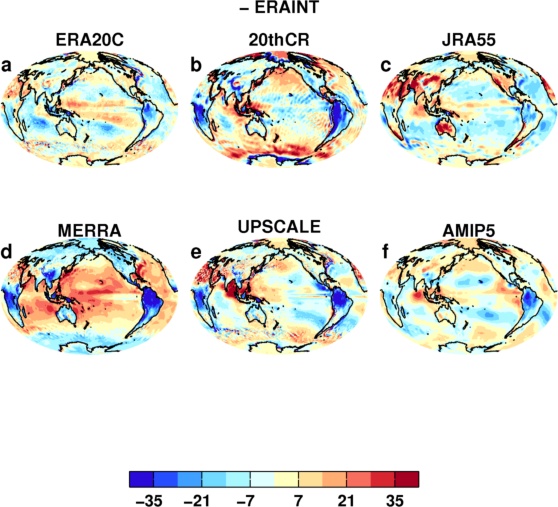

Fig. 2: DIV differences tween dataset shown and ERAINT.

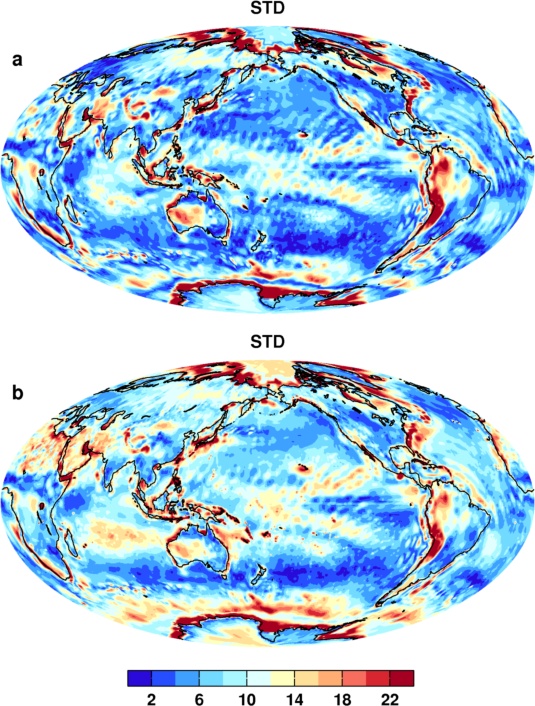

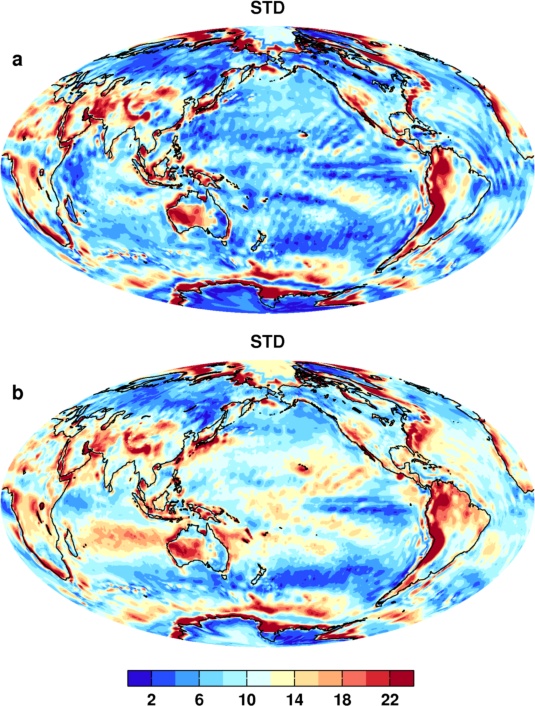

Fig. 3: STD (standard deviation) of DIV.
(a) from 4 datasets (ERAINT, ERA20C, 20thCR, JRA55).
(b) from 5 datasets including MERRA.

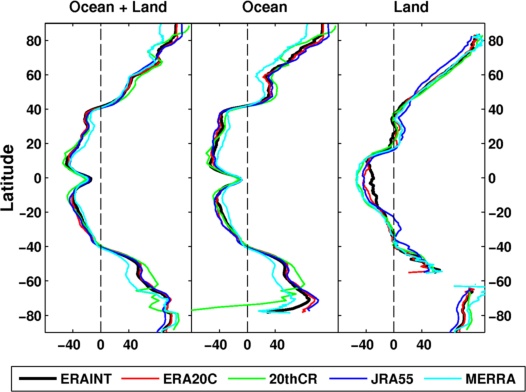

Fig. 4: Zonal mean DIV.

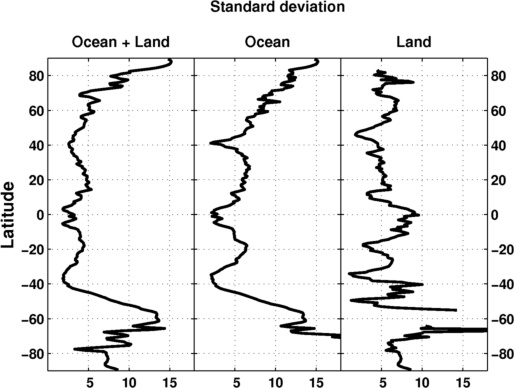

Fig. 5: STD (standard deviation) of zonal mean DIV.

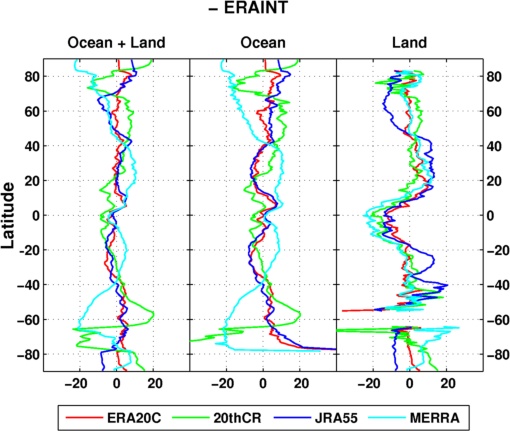

Fig. 6: Zonal mean difference of DIV between dataset shown and ERAINT.


Monday 15/06/2015

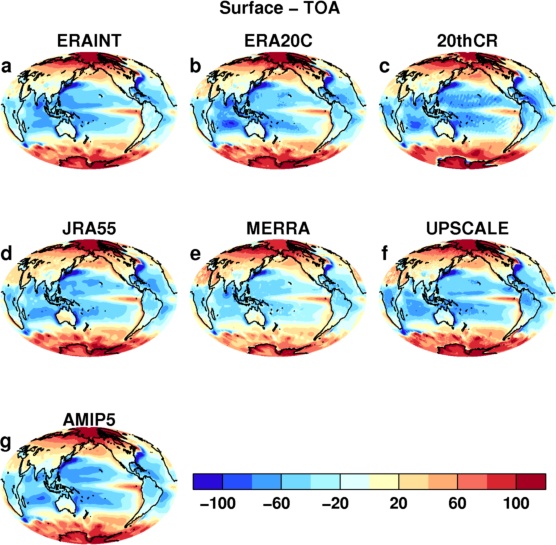

Fig. 1: Multi-annual (1986-2000) mean of FS - FTOA (referenced as DIV).
(a) DIV is adjusted (add a contant) to keep area mean FS = 0 over land.
(b) DIV over ocean is adjusted (add a constant) to make sure global mean DIV = 0.


Fig. 2: DIV differences tween dataset shown and ERAINT.


Fig. 3: STD (standard deviation) of DIV.
(a) from 4 datasets (ERAINT, ERA20C, 20thCR, JRA55).
(b) from 5 datasets including MERRA.




27/04/2015


Fig. 1: Multi-annual (2-001-2005) mean of net downward surface energy flux.
(a) from mass-corrected ERAINT energy divergence.
(b) from mass-corrected MERRA (from Michael Mayer) energy divergence.
Both estimations use same TOA input and total energy tendency.

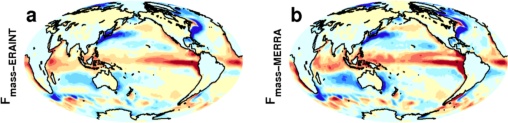

Fig. 2: Difference of multi-annual (2-001-2005) mean of net downward surface energy flux.
Fres is our old calculation (incorrect), Fres-new is correct one using Michael's forecasted total energy tendency. Fmass is from mass corrected ERAINT energy divergence, and Fmass-MERRA is from mass corrected MERRA energy divergence provided by Michael.

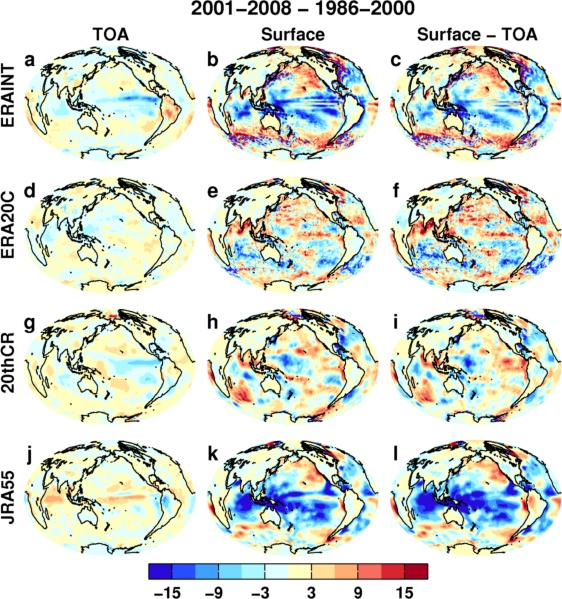

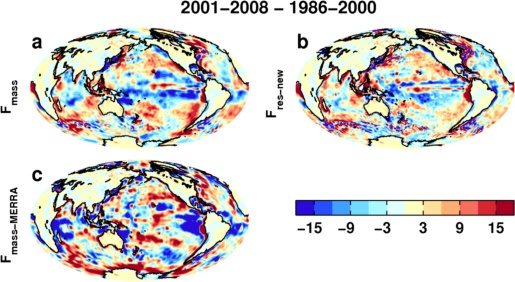

Fig. 3: Changes of net downward surface energy flux (2001-2008 minus 1986-2000).




Fig. 5 of JGR Paper(22/04/2015)

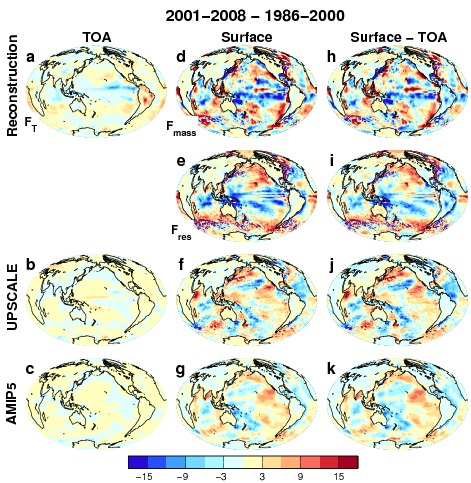

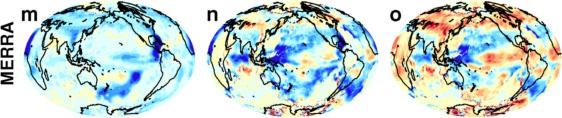

Fig. 1: Fig. 5 of paper.




More data



Fig. 2: As Fig. 1, but more datasets are shown.

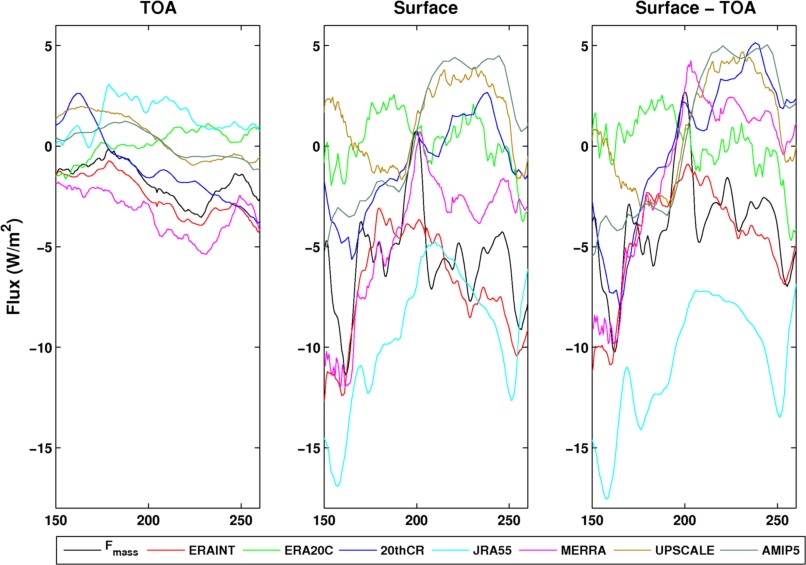

Fig. 3A: Mean between 20S and 20N (ocean). The x-axis is logitude from 150E to 260E.



-->

Fig. 3B: As Fig. 3A, but mean over 150E-260E is removed.

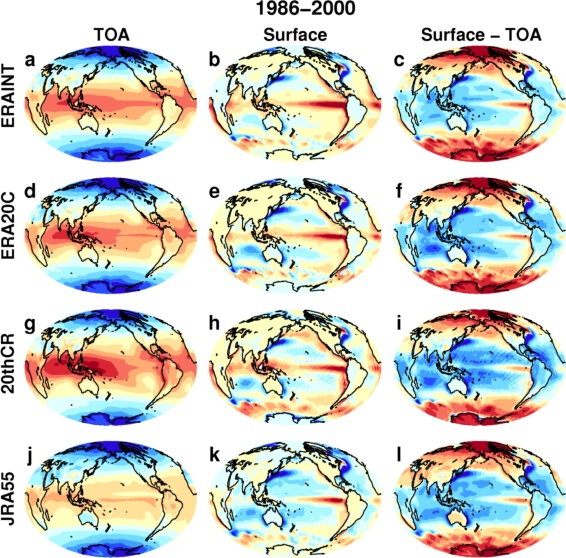

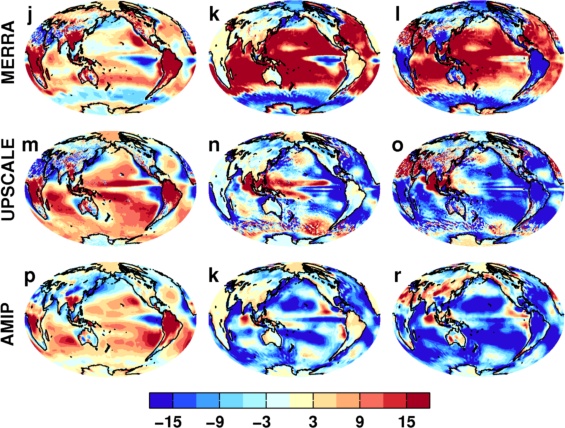

Plots suggested by Pat





Fig. 4: Muti-annula mean

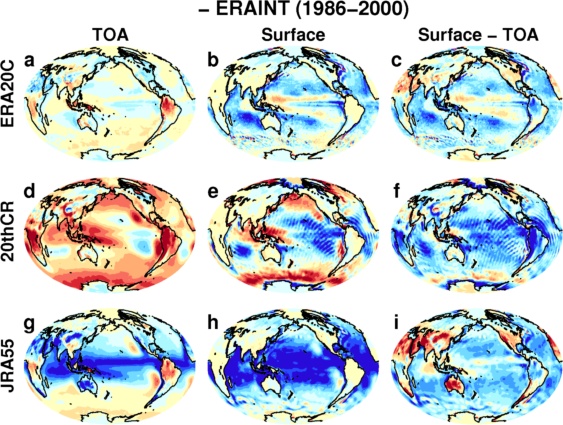

Difference with ERAINT





Fig. 5: Muti-annula mean difference with ERAINT

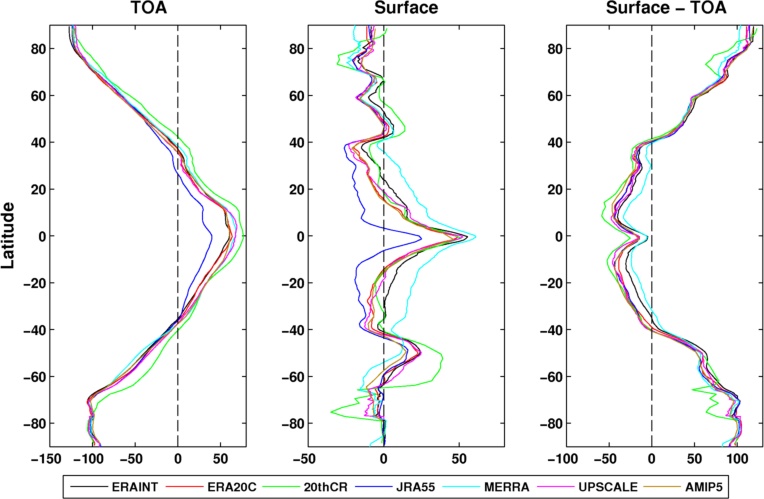

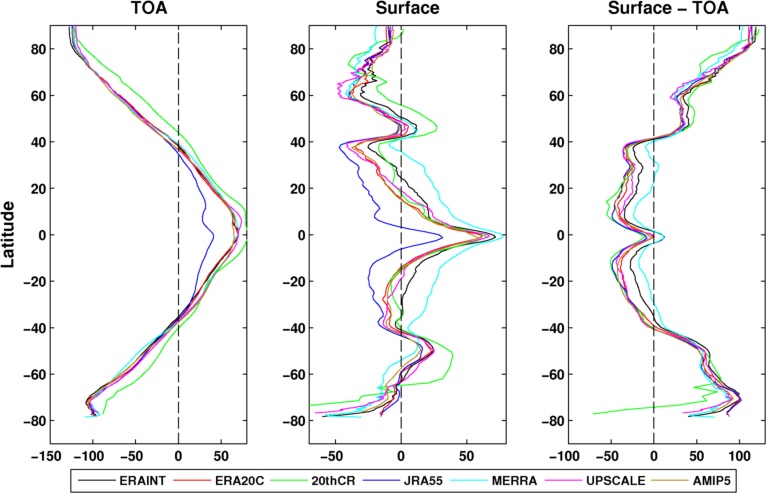

Fig. 6A: Zonal mean over the globe (ocean + land : 1986-2000 mean)

Area mean TOA net downward flux over 1986-2000
ERAINTERA20C20thCRJRA55MERRAUPSCALEAMIP5
Ocean + Land-1.1248-0.964611.8081-10.40662.62281.61970.7022
Ocean6.65257.366820.9352-3.21322.508210.64558.4282
Land-20.3613-21.5716-10.7486-28.12420.3933-18.8287-18.1523


Area mean surface net downward flux over 1986-2000
ERAINTERA20C20thCRJRA55MERRAUPSCALEAMIP5
Ocean + Land7.53341.5265-7.1931-8.839813.80272.4605-0.6218
Ocean10.29611.6821-9.5496-12.713918.66233.6668-0.5501
Land0.69991.1417-1.36910.70211.9742-0.2725-0.7967








Fig. 6B: Zonal mean over the global ocean (1986-2000 mean)





2001-2008

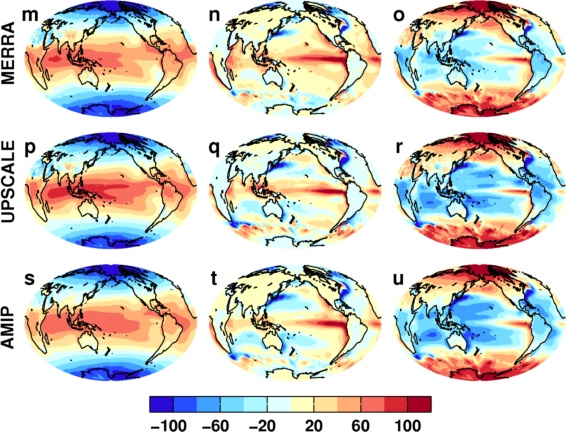

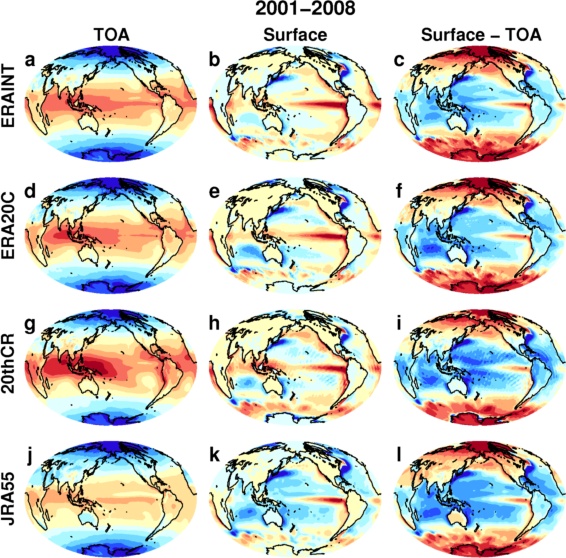

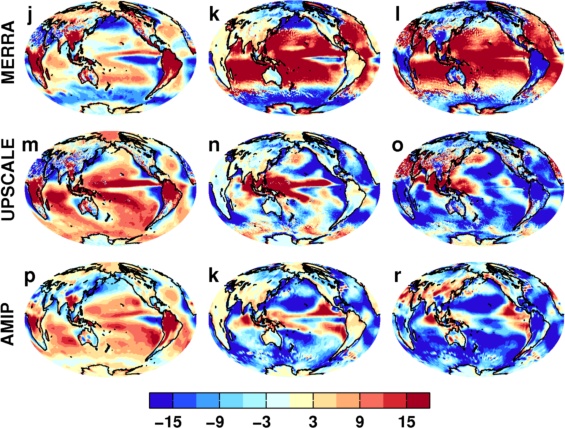

Fig. 7: Muti-annula mean (2001-2008)

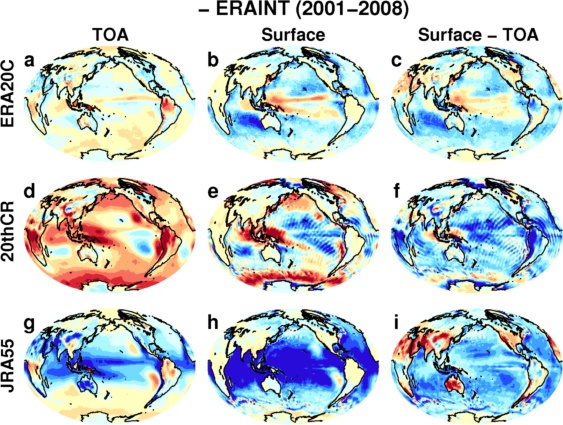

Difference with ERAINT (2001-2008)





Fig. 8: Muti-annula mean difference with ERAINT (2001-2008)
