Wednesday 08/07/2015

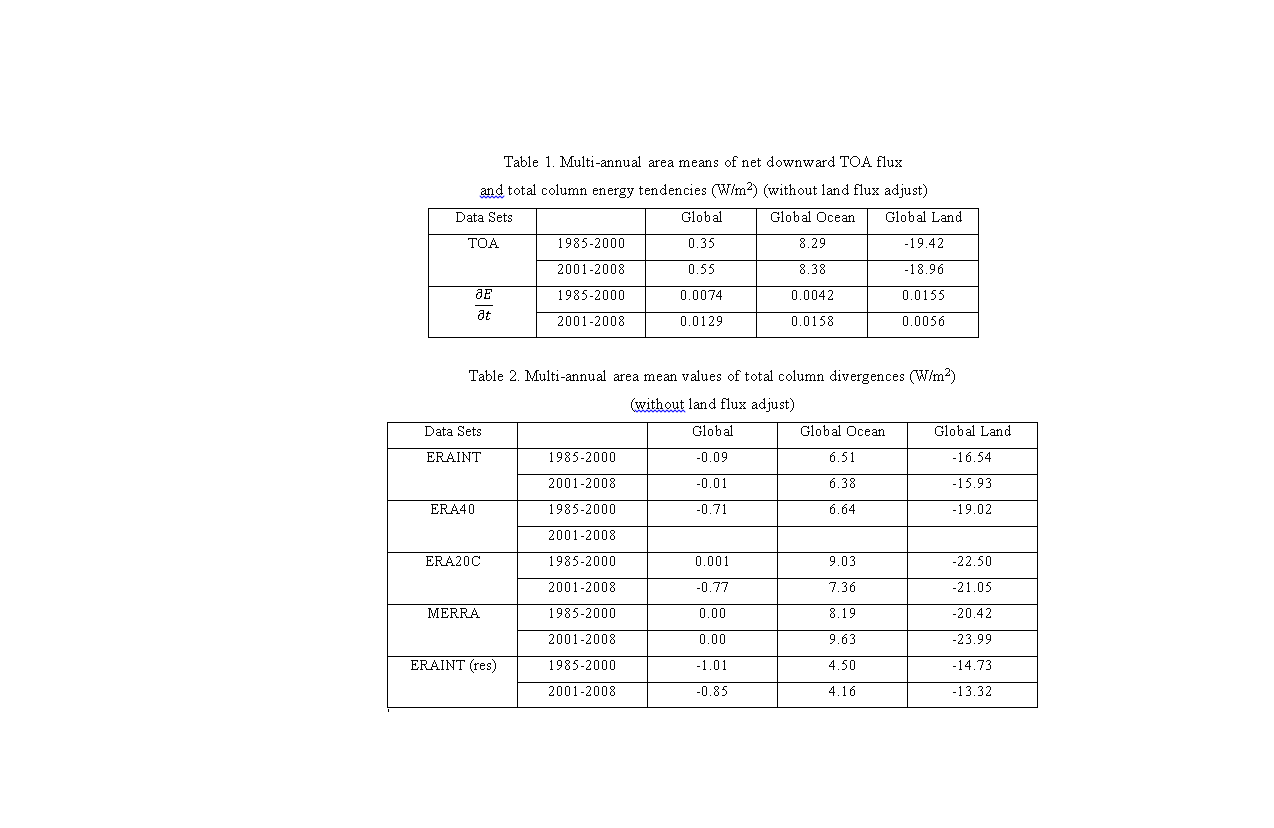

Uncertainties of derived surface fluxes are from uncertainties of

• TOA radiation flux uncertainties which have been estimated by Allan et al. (2014)
• Total column energy divergence uncertainties which will be estimated here using four mass corrected divergences from atmospheric reanalysis: ERA-Interim (ERAINT), ERA40, ERA20C (ERA-CLIM project) and MERRA.

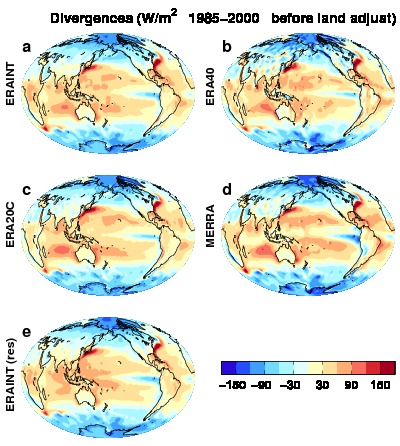

Fig. 1: Multi-annual (1985-2000) mean of divergences (DIV) from four mass corrected DIVs. ERAINT (res) is from the residual method as described by Liu et al . (2015).

NOTE:

• This is before land adjust, so mean surface fluxes may not close to zero.
• You cannot see difference from the mean plot with/without land flux constrain.
• Mean plot over 2001-2008 shows similar pattern.

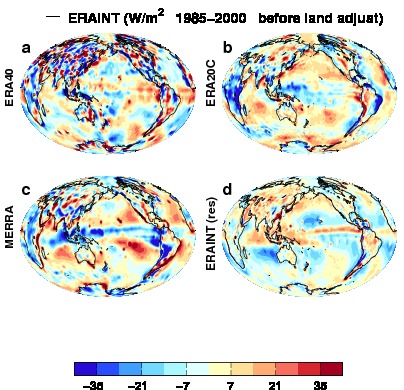

Fig. 2a: DIV differences between datasets shown and ERAINT.
(* before land flux constrain)

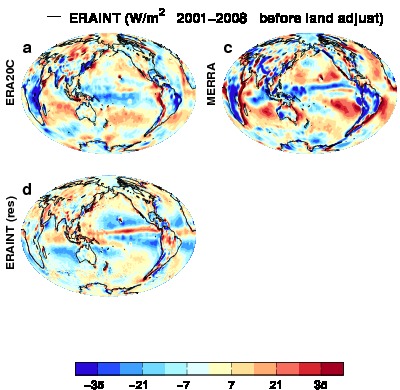

Fig. 2b: As Fig. 2a, but over 2001-2008. ERA40 is missing since I only get the mass corrected DIV over 1985-2000.
(* before land flux constrain)

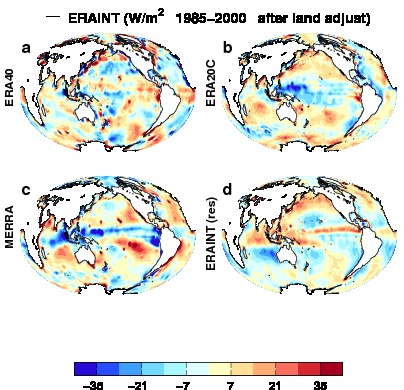

Fig. 3a: As Fig. 2a (over 1985-2000), but after land constrain.

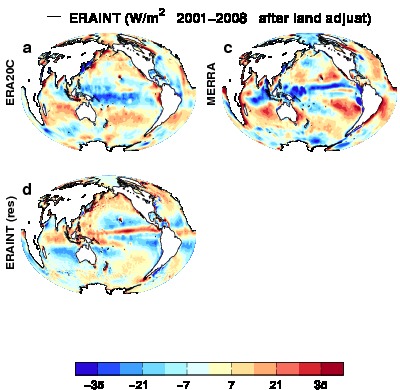

Fig. 3b: As Fig. 3a, but over 2001-2008.

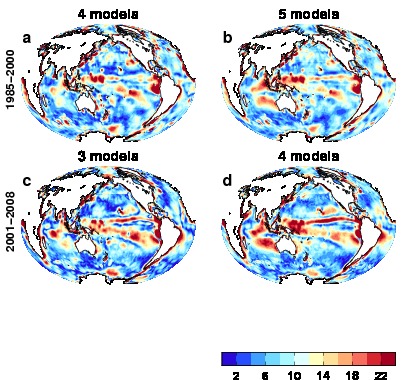

Fig. 4a: Standard deviation of mean DIVs before land flux constrain.

• (a) From 4 mass corrected DIVs (1985-2000).
• (b) 4 mass corrected DIVs plus DIV from ERAINT(res)(1985-2000).
• (c) as (a), but over 2001-2008 without ERA40.
• (d) as (b), but over 2001-2008 without ERA40.

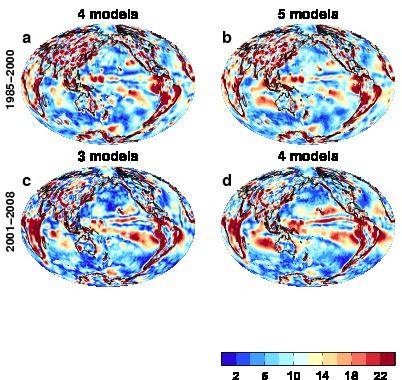

Fig. 4b: As Fig. 4a, but after land flux constrain.

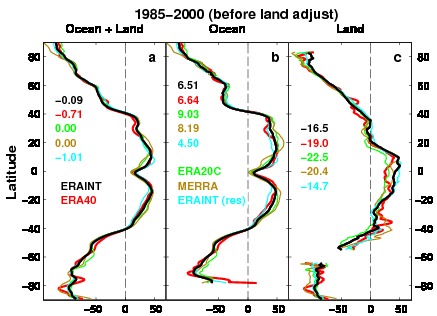

Fig. 5a: Zonal means (1985-2000) over (a) globe, (b) global ocean and (c) global land.
NOTE: this is before land flux constrain.

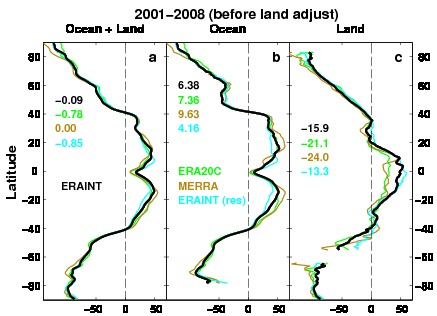

Fig. 5b: As Fig. 5a, but over 2001-2008.

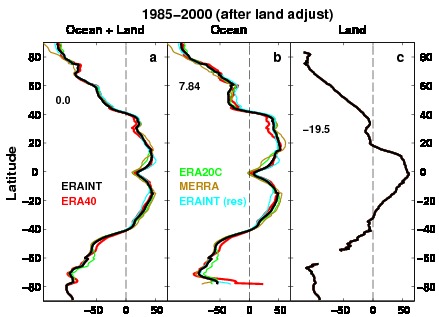

Fig. 5c: As Fig. 5a (over 1985-2000), but after land flux constrain.

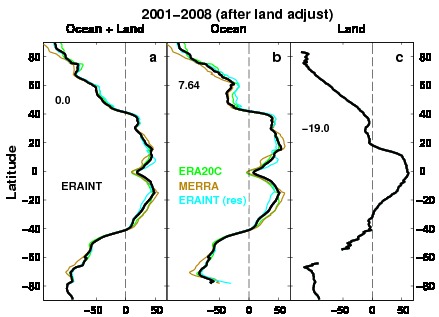

Fig. 5d: As Fig. 5c, but over 2001-2008.

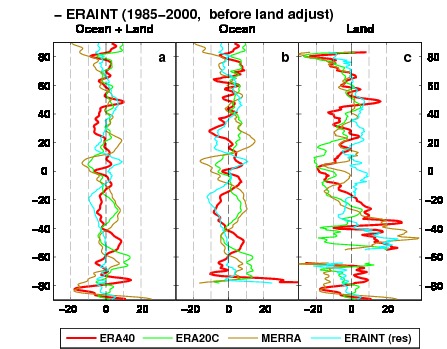

Fig. 6a: Zonal mean (1985-2000) difference between data sets shown and ERAINT.
NOTE: this is before land flux constrain.

Fig. 6b: As Fig. 6a, but over 2001-2008.

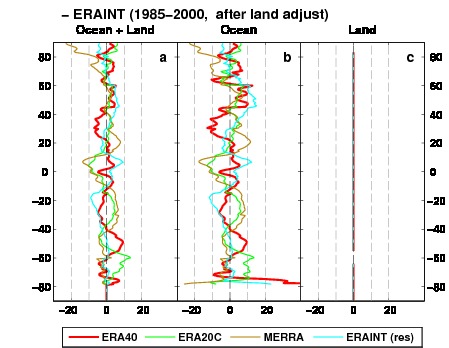

Fig. 6c: As Fig. 6a (over 1985-2000), but after land flux constrain.

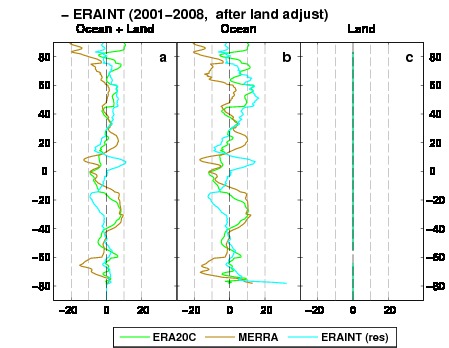

Fig. 6d: As Fig. 5c, but over 2001-2008.

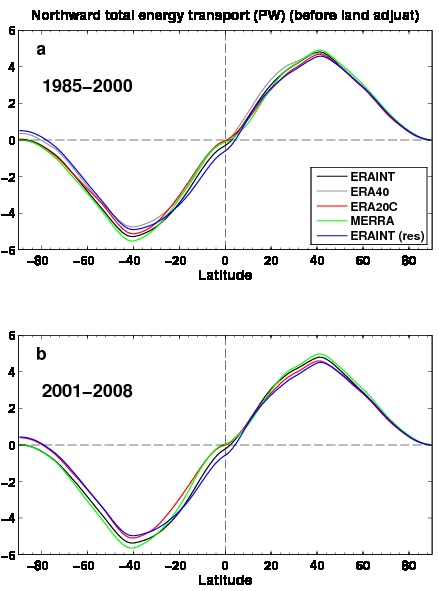

Fig. 7a: Northward transport (PW) over (a) 1985-2000 and (b) 2001-2008 for different datasets.
NOTE: this is before land flux constrain.

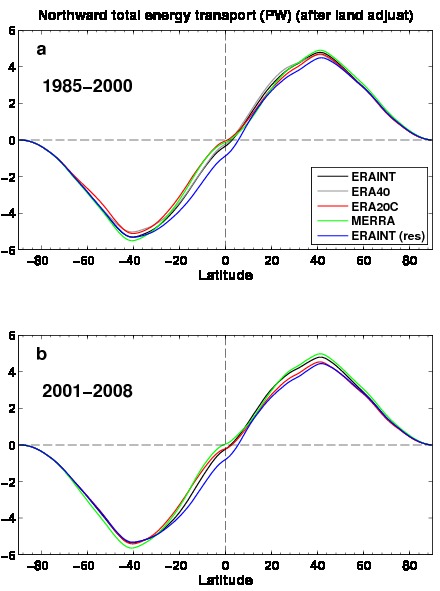

Fig. 7b: As Fig. 7a, but after land flux constrain.

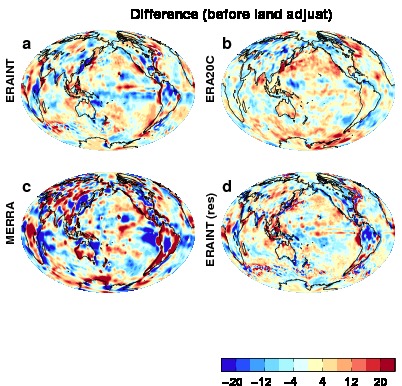

Fig. 8a: DIV difference between two peroid means (1985-2000 minus 2001-2008).
NOTE: this is before land flux constrain.

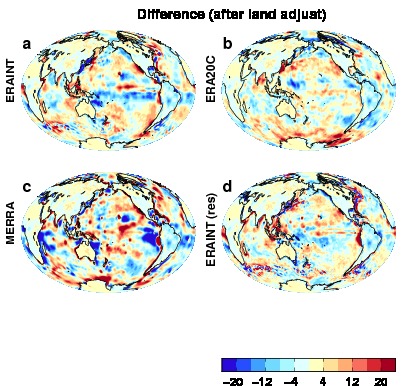

Fig. 8b: As Fig. 8a, but after land flux constrain.

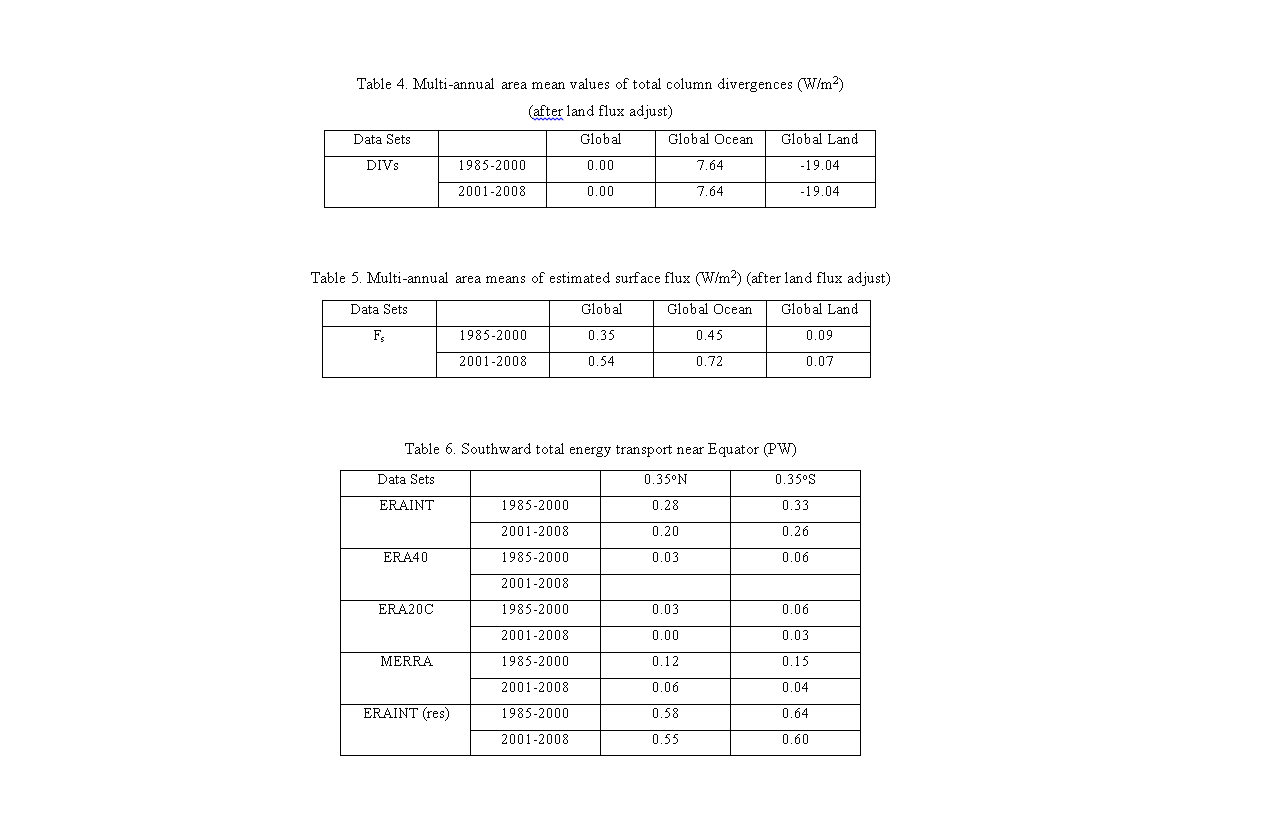

Transport near Equator
