On the storage of arbitrarily aggregated data arrays (v0.1)¶
Abstract¶
This document describes a framework for storing arbitrarily aggregated data arrays within memory and proposes a convention for efficiently storing them in a file.
Introduction¶
The proposed CF aggregation rules allow for the aggregation of CF fields across multiple dimensions. These rules are based solely on the fields’ metadata, therefore allowing aggregation to be reliably automated. This raises the possibility of large amounts of aggregations being created and therefore storing these collections is clearly desirable.
This document describes how the data arrays of such aggregations could be stored in the memory of an application and proposes a convention – the NCA (netCDF aggregate) convention – for their efficient file storage.
The key element of the NCA files is that they are CF-compliant netCDF files, albeit ones which require extra processing to realise their aggregated data arrays.
This style of aggregation marks a considerable advance from NetCDF Markup Language (NcML) aggregation, which has long-standing use in the community but is relatively limited.
A conceptual framework for the in-memory storage of aggregated arrays¶
An aggregated data array (or master array) is one which is partitioned such that each partition is replaced by a reference to an independent, non-aggregated array which contains the data, called a sub-array.
Aggregated data arrays arise naturally from the aggregation process, but may be generated by other mechanisms (such the Large Amounts of Massive Arrays (LAMA) functionality of cf-python).
The sub-array referred to by each partition exists either as an actual array in memory or as another reference to an array contained within a file.
The master array may be partitioned along any, arbitrary subset of its dimensions. The choice of partition positions does not affect the master array. The only constraint on partition positions is that the matrix of partitions (the partition matrix) must be be hyperrectangular, i.e. it must not ragged along any of the partition dimensions.
To meet the requirement of a hyperrectangular partition matrix, it may be necessary to add virtual partitions to the master array. This will be the case if the master array’s sub-array edges are not all aligned. Virtual partitions allow the master array to view a sub-array as two or more independent sub-arrays without turning the sub-array itself into an aggregated data array. Each virtual partition is a reference to a part of a sub-array. Virtual partitions are positioned so as to ensure that all partition edges are aligned and therefore that the partition matrix is hyperrectangular.
The master array makes no distinction between partitions and virtual partitions so, henceforth, both are referred as partitions, and a partition’s data array refers to the part of an array to which it refers. The partition’s sub-array is always the entire array of which the partition’s data array is a part.
Example 1: Partitions of a 2 dimensional master array
The 2-dimensional 8 x 7 master array in figure 1a is composed from 11 sub-arrays. These sub-arrays do not form a rectangular matrix (not all of their edges are aligned), so virtual partitions are created resulting in 24 partitions arranged in a hyperrectangular 4 x 6 matrix (figure 1b).

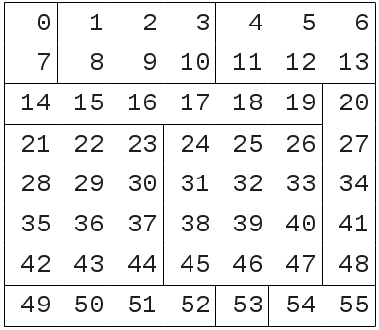

Figure 1a. The 11 sub-arrays of the master array.
Figure 1b. Each block of colour represents one of the 11 sub-arrays and each of the master array’s partitions is labelled Pyx
Accounting for arbitrary sub-array properties¶
There are aspects of a sub-array (such as the order of its dimensions) which are arbitrary and are therefore do not affect the master array. Relative to the master array, a sub-array may have:
- Differently ordered dimensions
- Missing or extra size 1 dimensions
- Dimensions which run in different senses
- Different, but equivalent, units
When a partition’s data array is required by the master array, it needs to be conformed by doing any or none of:
- Reordering its dimensions to the same order as the master array
- Removing size 1 dimensions which don’t exist in the master array
- Adding size 1 dimensions which exist in the master array but not in the sub-array
- Reversing dimensions which run in the opposite direction to the master array
- Converting the data values to have the same units as the master array
Parameters required for specifying an aggregated data array¶
It follows that an aggregated data array and its partitions may be completely specified by a small number of parameters. The master array comprises:
- dtype
- The data type of the master array’s dimensions
- units
- The units of the master array.
- calendar (optional)
- The calendar of the master array.
- dimensions
- An ordered list of the master array’s dimensions.
- shape
- An ordered list of the master array’s dimension sizes.
- directions
- An ordered list of the master array’s dimension directions.
- pdimensions
- An ordered list of the dimensions along which the master array is partitioned.
- pshape
- An ordered list containing the number of partitions along each partitioned dimension of the master array. The sizes correspond to the pdimensions list.
- Partitions
- A matrix of the master array’s partitions.
Each partition comprises:
- location
- An ordered list of the ranges of indices for each dimension of the master array which describe the section of the master array spanned by this partition.
- dimensions
- An ordered list of the partition’s data array’s dimensions.
- directions
- An ordered list of the partition’s data array’s dimension directions.
- units
- A string containing the units of the partition’s data array.
- calendar (optional)
- A string containing the calendar of the partition’s data array.
- part
- An ordered list of indices for each dimension of the partition’s sub-array which describes the part of the sub-array which applies to this partition.
- data
- A reference to the partition’s sub-array.
The NCA convention¶
A proposal for the efficient netCDF file storage of aggregated data arrays
Storing the aggregated data array parameters in a string¶
With the exception of a partition’s data parameter, all of the values of the parameters which describe an aggregated data array are of one the following basic types:
- string
- number
- boolean
- list
- associative array
The partition’s data parameter is more complicated, as it may be an actual array in memory or some type of reference to a file. In the latter case, the reference may be encapsulated by a collection of these basic types (for example, if the reference is to a netCDF variable, then all that is required are its filename (string), the variable name (string) and its shape (list of numbers)). In the former case, note that when writing an aggregated array to a netCDF file, the in-memory array may be written to a variable in the same netCDF file as the aggregated data array and therefore all that is need are the filename, the variable name and its shape (see example 3).
Therefore, when the aggregated data array is to be stored in a netCDF file, the parameters which completely it may all be cast as the aforementioned basic types end therefore may be easily encoded in a JSON (JavaScript Object Notation) string for simple inclusion in the file.
JSON is a lightweight data-interchange format which is easy for humans to read and write and easy for machines to parse and generate. There are JSON encoders and decoders for every reasonable language. See the JSON Wikipedia article for examples.
Creating a netCDF variable for the aggregated data array¶
A multidimensional aggregated data array may be stored in a scalar netCDF variable, one of whose attributes is the JSON encoded string of the aggregated data array parameters. When read, this scalar array variable may then be converted to a multidimensional array variable after the parameters have been decoded.
Such a variable is called an NCA variable (netCDF aggregate variable) and a file storing NCA variables is called an NCA file (netCDF aggregate file) and should include ‘CF’ and ‘NCA’ in its global conventions attribute.
Advantages¶
- NCA files are CF compliant.
- Variables within an NCA file may be a mixture of normal, multidimensional array variables and NCA variables.
- Much, if not all, of the discovery metadata in an NCA is independent of the aggregated data array convention and so is accessible to all netCDF readers.
- Changes to the elements of the aggregated data array may be stored.
- An NCA variable may have any attributes attached to it.
- NCA encoded parameters may be succinct, as there are clear rules on taking default values for partitions.
Disadvantages¶
- Software which creates and reads NCA files in their entirety needs to be able to cope with aggregated data arrays. However, cf-python can do this.
Comparison with NcML aggregation¶
NetCDF Markup Language (NcML) aggregation doesn’t allow:
- Multidimensional aggregation
- Metadata-based aggregation
- Alterations to the data or metadata
Recommended usage¶
It is recommended, though not necessary to write the following types of variable as normal (non-NCA) netCDF variables:
- 1-dimensional coordinates and their bounds (to facilitate discovery).
- Aggregated data arrays with only one partition whose data array is in-memory (to avoid unnecessary obfuscation).
Example 2: A simple NCA file:
netcdf temperature.nca {
dimensions:
time = 48 ;
lat = 64 ;
lon = 128 ;
variable:
double time(time) ;
time:long_name = "time" ;
time:units = "days since 0000-1-1" ;
double lat(lat) ;
lat:units = "degrees_north" ;
lat:standard_name = "latitude" ;
double lon(lon) ;
lon:units = "degrees_east" ;
lon:standard_name = "longitude" ;
float tas ;
tas:standard_name = "air_temperature" ;
tas:units = "K" ;
tas:nca_dimensions = "time lat lon" ;
tas:nca_array = "{directions': {'lat': false,
'time': true,
'lon': true
},
'pshape': [2],
'pdimensions': ['time'],
'Partitions': [{'index': [0],
'data': {'file': '/home/david/test1.nc',
'shape': [12, 64, 128],
'ncvar': 'tas'
},
'location': [[0, 12], [0, 64], [0, 128]],
'format': 'netCDF'
},
{'index': [1],
'data': {'file': '/home/david/test2.nc',
'shape': [36, 64, 128],
'ncvar': 'tas2'
},
'location': [[12, 48], [0, 64], [0, 128]],
'format': 'netCDF'
}
]
}" ;
// global attributes:
:Conventions = "CF-1.5 NCA" ;
data:
time = 164569, 164599.5, 164630.5, 164660, 164689.5, 164720, 164750.5,
// etcetera.
lat = -87.8638000488281, -85.0965270996094, -82.3129119873047,
// etcetera.
lon = 0, 2.8125, 5.625, 8.4375, 11.25, 14.0625, 16.875, 19.6875, 22.5,
// etcetera.
Points to note:
- The file specifies two conventions.
- The file contains one NCA variable (tas) and three normal variables (time, lat and lon).
- The NCA variable stores the aggregated data array’s dimensions in a separate attribute (nca_dimensions) to facilitate reconstruction of a multidimensional variable without having to decode the nca_array string.
- The nca_array string has been split over many lines for enhanced readability. Arbitrary new lines are permitted in JSON strings.
- The NCA variable defines its data type and units in the normal manner, so that these parameters of the master array may be omitted from the nca_array attribute.
- The NCA variable may have any CF-netCDF attributes, with no restrictions.
- Parameters of the partitions which are the same as their master array may be omitted.
Example 3: storing an aggregated data array with an in-memory partition data array:
netcdf temperature2.nca {
dimensions:
time = 48 ;
lat = 64 ;
lon = 128 ;
nca12 = 12 ;
nca64 = 64 ;
nca128 = 128 ;
variable:
double time(time) ;
time:long_name = "time" ;
time:units = "days since 0000-1-1" ;
double lat(lat) ;
lat:units = "degrees_north" ;
lat:standard_name = "latitude" ;
double lon(lon) ;
lon:units = "degrees_east" ;
lon:standard_name = "longitude" ;
float tas ;
tas:standard_name = "air_temperature" ;
tas:units = "K" ;
tas:nca_dimensions = "time lat lon" ;
tas:nca_array = "{directions': {'lat': false,
'time': true,
'lon': true
},
'pshape': [2],
'pdimensions': ['time'],
'Partitions': [{'index': [0],
'units' : 'K @ 273.15',
'dimensions': ['lon', 'time', lat'],
'directions': {'time': false},
'data': {'shape': [128, 12, 64],
'ncvar': 'nca_45sdf83745'
},
'location': [[0, 12], [0, 64], [0, 128]],
'format': 'netCDF'
},
{'index': [1],
'data': {'file': '/home/david/test2.nc',
'shape': [36, 64, 128],
'ncvar': 'tas2'
},
'location': [[12, 48], [0, 64], [0, 128]],
'format': 'netCDF'
}
]
}" ;
float nca_45sdf83745(nca128, nca12, nca64) ;
nca_45sdf83745:nca_private = 1 ;
// global attributes:
:Conventions = "CF-1.5 NCA" ;
data:
time = 164569, 164599.5, 164630.5, 164660, 164689.5, 164720, 164750.5,
// etcetera.
lat = -87.8638000488281, -85.0965270996094, -82.3129119873047,
// etcetera.
lon = 0, 2.8125, 5.625, 8.4375, 11.25, 14.0625, 16.875, 19.6875, 22.5,
// etcetera.
nca_45sdf83745 = -4.5, 3.5, 23.6, -4.45, 13.5, 13.6,
// etcetera.
Points to note:
- The in-memory partition data array has been written to the file with an automatically generated variable name (nca_45sdf83745), which has an attribute nca_private to mark it as a private variable according to the NCA convention.
- The in-memory array had different units and dimension order relative to the master array.
- The time dimension of the in-memory array is decreasing, but the other dimensions run in the same sense as the master array.
- The private NCA variable has dimensions which are only used by private NCA variables.
A complete description of NCA attributes describing the aggregated data¶
- nca_private
The integer flagging the containing netCDF variable as containing a multidimensional array which is referred to by one or more of an aggregated data array partitions in the NCA file.
For example: 1
A value of 0 means the variable is not a private NCA variable, any other integer means that it is.
- nca_dimensions
An string containing and ordered, space delimited list of the master array’s dimensions. The dimension names are all those of dimensions defined in the NCA file.
For example: "time lat lon"
- nca_array
A JSON encoded string containing parameters required for constructing the aggregated data array.
Note the dimensions, shape, dtype, units and calendar parameters are specified elsewhere (in the nca_dimensions attribute or by the NCA variable itself) and so are not required.
The decoded parameter names and types are described here.
- directions
An associative array mapping each dimension of the master array to a direction. Each direction is described as true (increasing) or false (decreasing).
For example: {'time', true, 'lat': false, 'lon', true}
If the master array is a scalar then a boolean rather than an associative array is given. (Note that a scalar master array may have an implied direction (e.g. there are bounds associated with it or it contains a pressure datum).
- pdimensions
An ordered list of the dimensions along which the master array is partitioned. Each of these dimensions is one those specified by the nca_dimensions attribute.
For example: ['lat', 'time']
- pshape
An ordered list containing the number of partitions along each partitioned dimension of the master array. The sizes correspond to the pdimensions list. This is the shape of the partition matrix. For
For example: [2, 3]
- Partitions
A list of each of the master array’s partitions. The order of the list is arbitrary since each element contains its (possibly multidimensional) index in the partition matrix.
Each element of the list specifies a partition with the following parameters (some of which are optional).
- index
An ordered list of indices (integers greater than or equal to 0) specifying the position of the partition in the partition matrix. The indices correspond to the pdimensions list.
For example: [0, 1]
- location
An ordered list of the ranges of indices for each dimension of the master array which describe the section of the master array spanned by this partition’s data array.
For example: [[0, 5], [3, 6], [2, 56]]
Each doublet refers to a range (start, stop) for the dimension, e.g. [3, 6] is equivalent to indices 3, 4 and 5.
- dimensions (optional)
An ordered list of the partition’s data array’s dimensions. The dimension names are all those of dimensions defined in the NCA file.
For example: ['lon', 'time', lat']
If missing then it assumed to be equal to dimensions of the master array. If there are any size 1 dimensions of the partition which are not spanned by the master array then the partition’s dimensions must be specified.
- format (optional)
A string naming the format of the file containing the partition’s data array.
For example: 'netCDF'
If missing then the format is assumed to that of the NCA file itself.
- directions (optional)
An associative array of the partition’s data array’s dimension directions.
For example: {'time', true, 'lat': true, 'lon', false}
Any dimension not specified is assumed to be equal to direction of the corresponding master array dimension. If there are any size 1 dimensions of the partition which are not spanned by the master array then their directions must be specified. Note that such dimensions must be defined in the netCDF file.
- units (optional)
A string containing the units of the partition’s data array. If missing then it assumed to be equal to units of the master array.
For example: 'm s-1'
- calendar (optional)
A string containing the calendar of the partition’s data array. If missing then it assumed to be equal to calendar of the master array.
For example: 'noleap'
- part (optional)
A string describing indices for each dimension of the partition’s sub-array (not its data array) which describe the part of the sub-array which applies to this partition.
For example: '[(2, 6, 1), [1,3,4,7], (0, 12, 2)]'
Triplets in square brackets a sequence in indices along that dimension. Triplets in round brackets describe a range (start, stop, step) for the dimension, e.g. (0, 12, 2) is equivalent to [0, 2, 4, 6, 8, 10].
Note that the data attribute describes the whole sub-array. If missing then it is assumed that the whole of the sub-array applies to this partition.
- data
Parameters required to extract the partition’s sub-array (not
- shape
An ordered list of the partition’s sub-array’s dimension sizes.
For example: [4, 7, 3]
- file (optional)
A string naming the file which holds the partition’s sub-array.
For example: '/home/me/temp/pp'
If missing then it is assumed to be containing NCA file.
- dtype (optional)
The data type of the partition’s sub-array.
For example: 'double'
If missing then the data type of the master array is assumed.
- ncvar (netCDF files only)
- The name of the netCDF variable containing the partition’s sub-array.
- file_offset (optional)
The word address of the file where the partition’s sub-array starts.
For example: 8460364
- lbpack (PP files only, optional)
The PP packing code of the array.
For example: 1
If missing then assumed to be 0 (unpacked).
- scale_factor (non-netCDF files, optional)
The scale factor (in the CF sense) of the partition’s sub-array.
For example: 1000.0
For netCDF files, it is assumed that the scale factor will accounted when reading the file. Otherwise, if missing then assumed to be 1 (unscaled).
- add_offset (non-netCDF files, optional)
The additive offset (in the CF sense) of the partition’s sub-array.
For example: 273.15
For netCDF files, it is assumed that the additive factor will accounted when reading the file. Otherwise, if missing then assumed to be 0 (no additive offset).
